BMW S55 GTX SINGLE TURBO KIT (M2C F87, M3 F80, M4 F82)

The Latest and The Best S55 Single Turbo Kit!
Proven technology, guaranteed to fit, race tested.
OEM+ Quality components

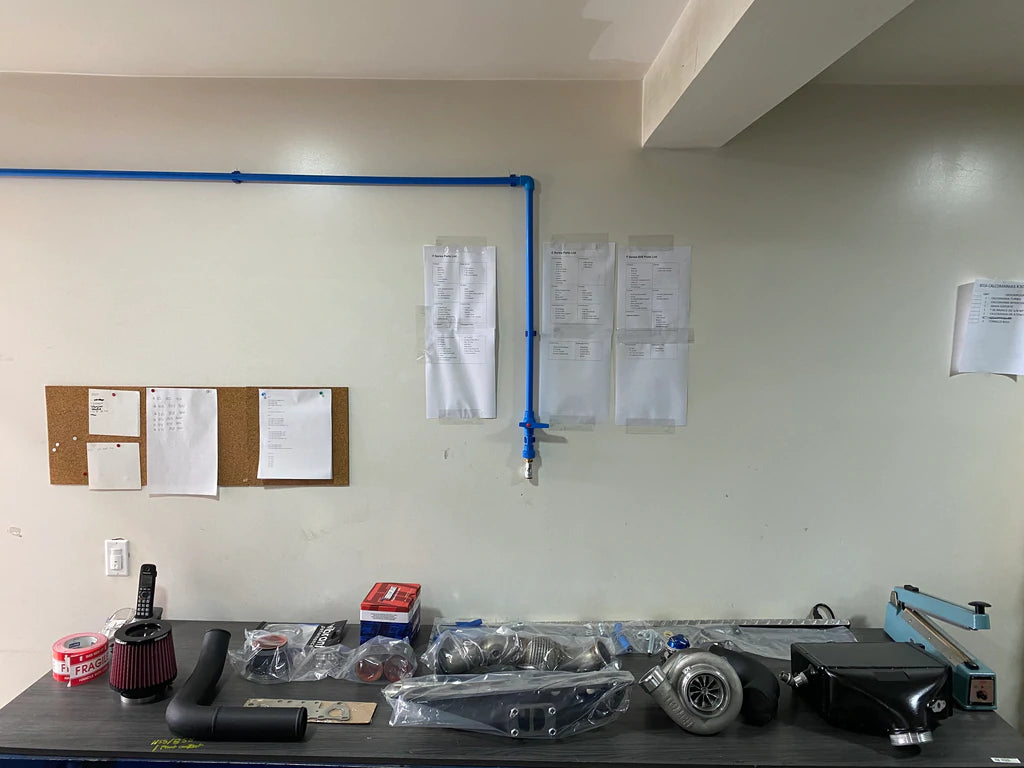

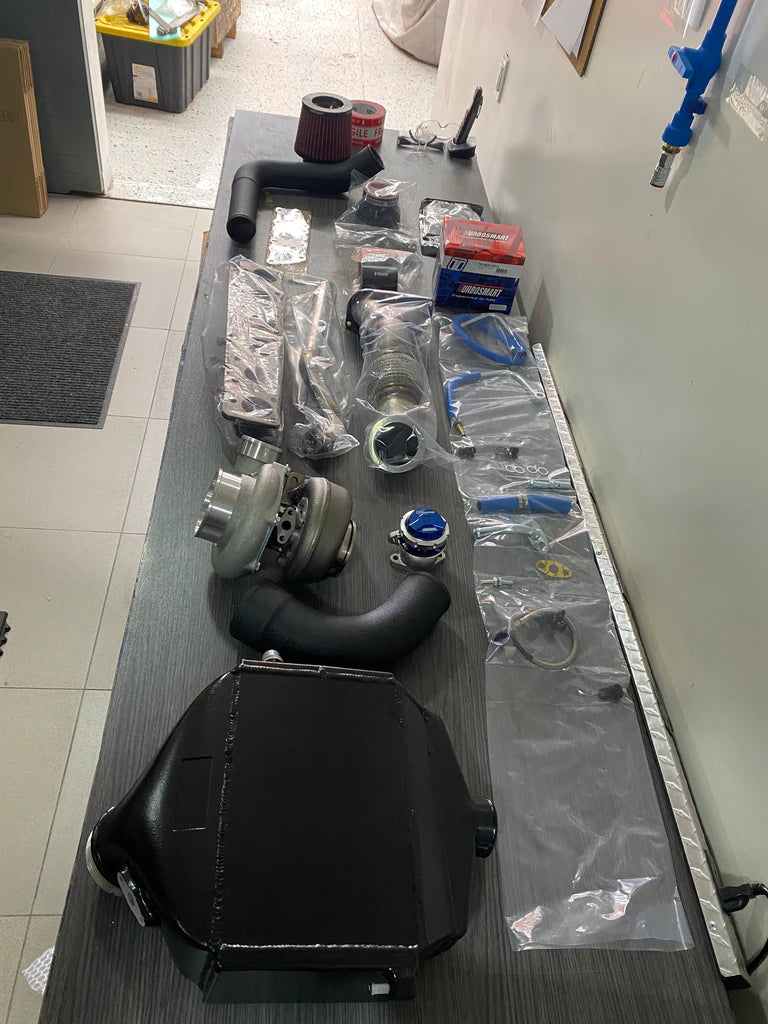

What our kit includes:

- Exhaust Manifold Gasket Set

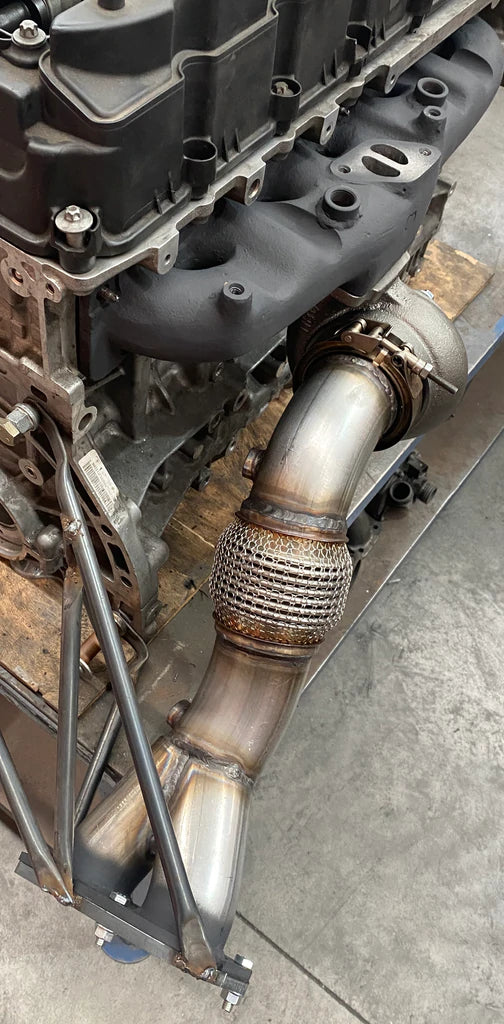

– Twin Scroll Manifold with 1.5″ runners for all 6 cylinders

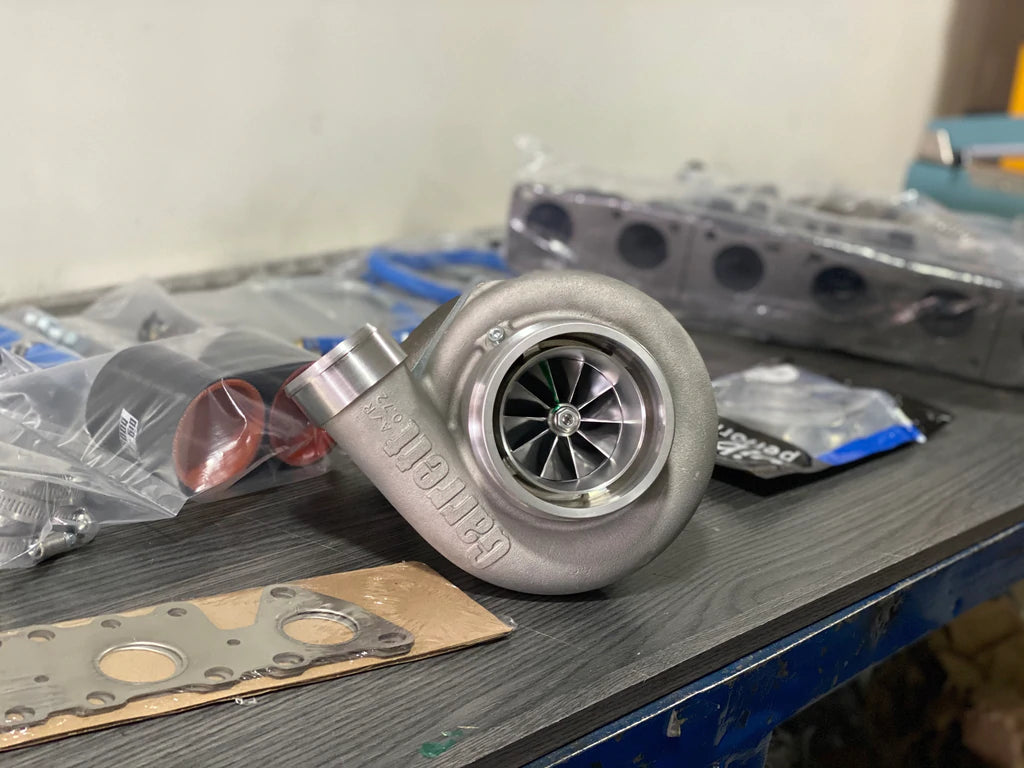

– Genuine Garrett GTX3584RS with 1.01 AR Twin Scroll GT Vband housing
– 4-Ply Silicone Hoses

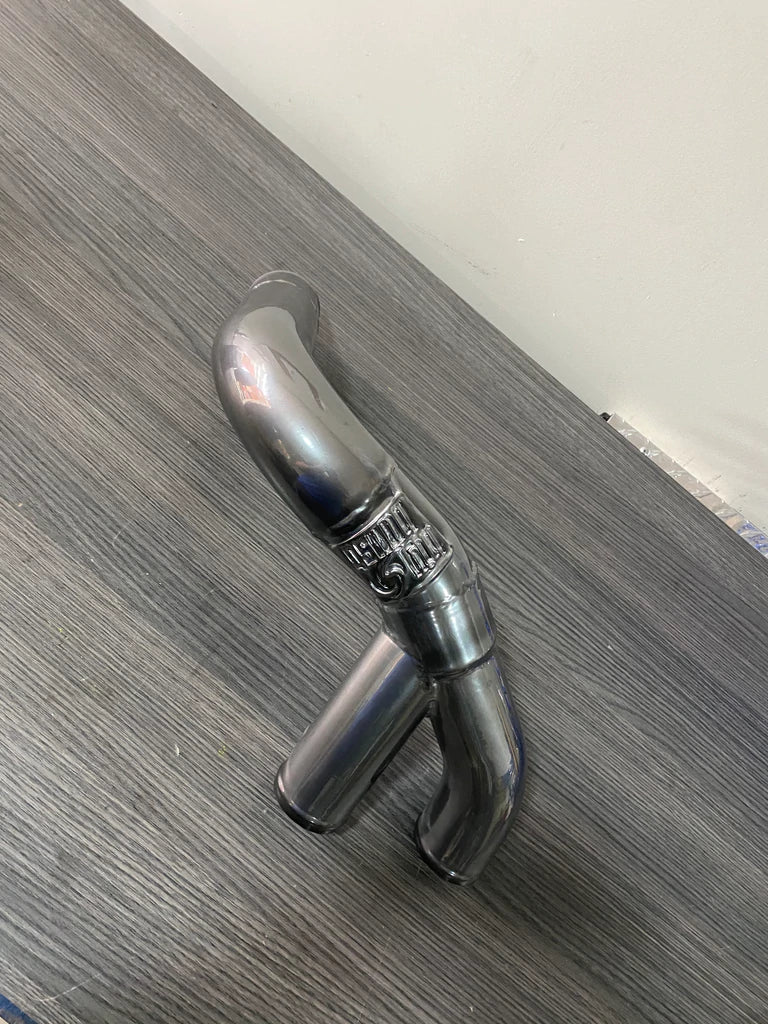

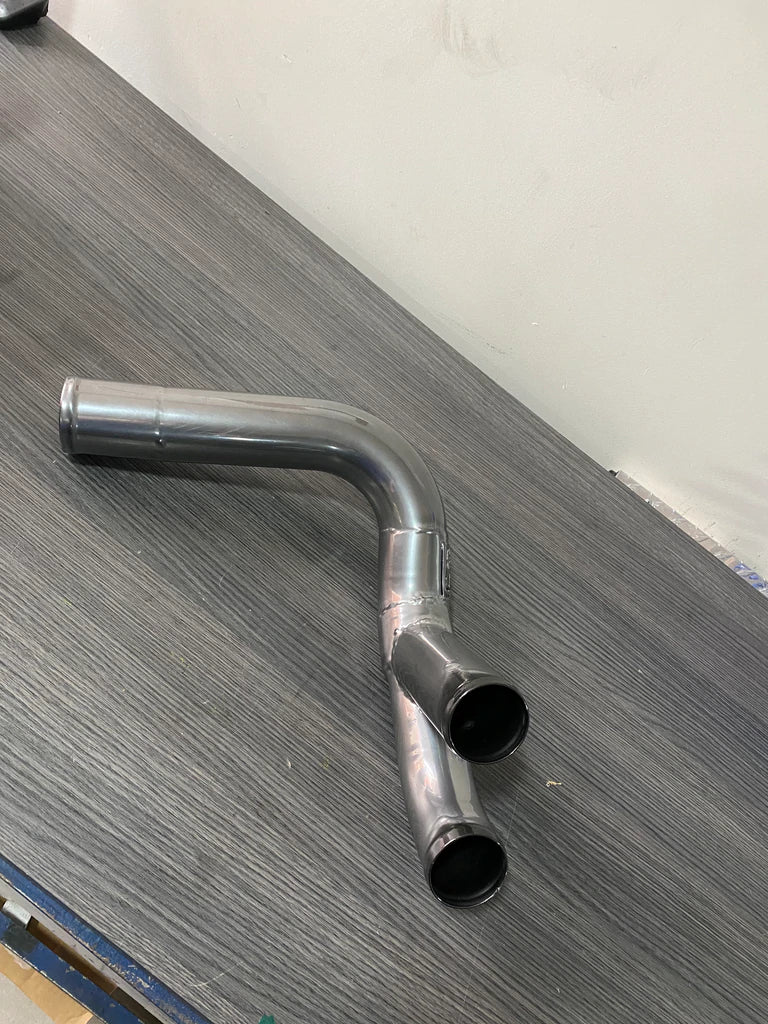

– Stainless Steel 304 TIG welded Y Pipe
– V Band clamps
– Coolant Aeroquip Hoses

- 14mm Banjo Fittings for coolant return and feed lines

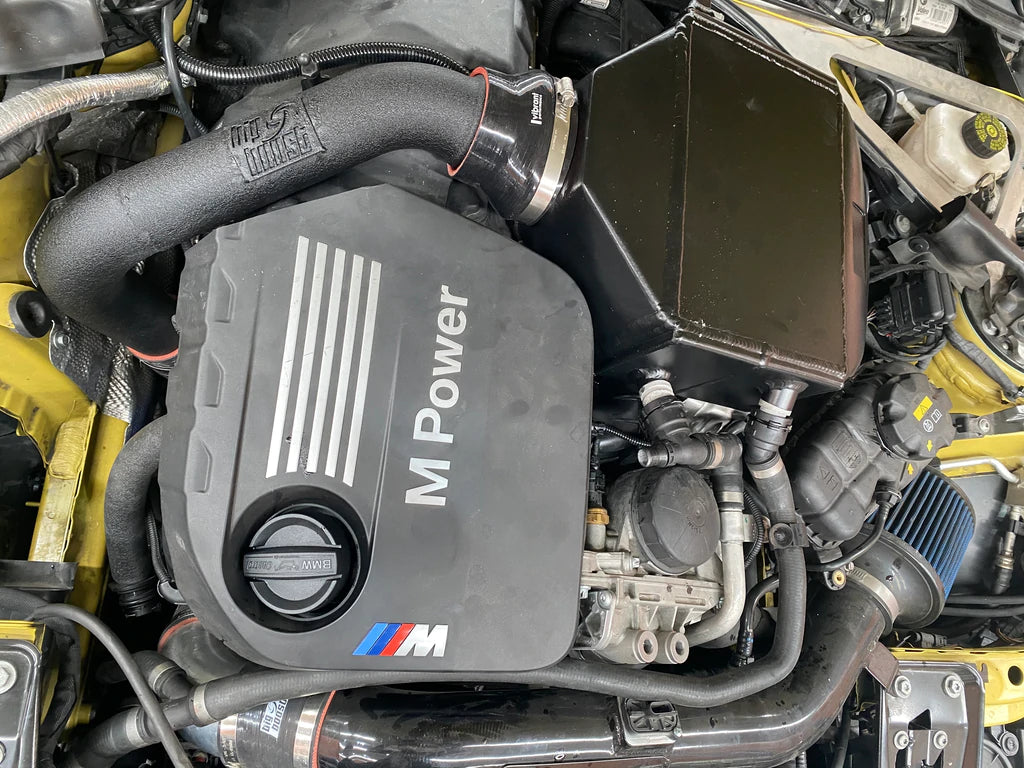

– Single Inlet Charge air cooler (Optional to use OEM style chargecooler)
– 2.5" to 3" Boost Pipe
– Aluminum 3.5" Turbocharger Inlet
– Oil feed stainless steel braided AN lines
– Stainless steel oil feed – Turbo oil drain coupler
– Oil Drain Aeroquip Hose
– All Stainless steel hose clamps

– Oetiker Hose Clamps
- Constant Pressure Hose Clamps
- External Turbosmart Wastegate and dump tube

Why going with BigBoost Turbo Kits?

– We have done intense and harsh in-house testing, measuring individual cylinder EGTs, and back pressure. With our kit you will see 1.11-1.12:1 Back pressure ratios, these are safe and ideal levels of back pressure for the engine to operate smoothly and safely.

- GTX turbos provide excellent reliability, and are quick to spool up! They are the perfect balance between size and flow that when paired to the correct exhaust manifold allow for high top end power without sacrificing spool time!

***These kits are made to order and may take around 4-5 weeks to be shipped***
