BOOTMOD3 B48/B46 Tune (FXX/GXX Series)

World's First, Most Advanced and Widely Adopted cloud-based flash tuning platform for the BMW F and G series vehicles.

Build the ultimate tune for your B48 / B46 engine powered vehicle and go from stock to full race calibration, and everywhere in between, with a map switch in the provided mobile app. bootmod3 calibrates the factory vehicle modules over the OBD port in a matter of minutes in the convenience of your driveway or anywhere internet access is available.

20i models:

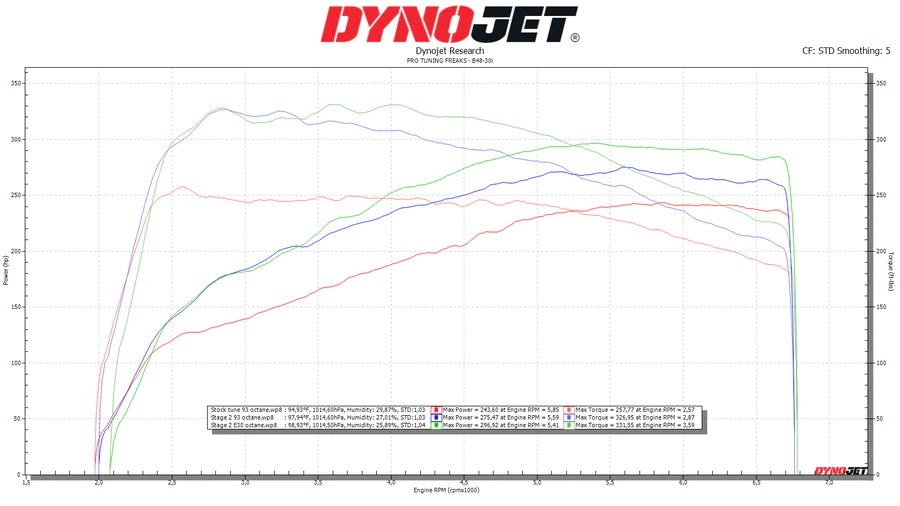

Stage 1 91 octane: up to 42% HP / 46% TQ
Stage 1 93 octane: up to 46% HP / 48% TQ
Stage 1 E30 octane: up to 53 % HP / 50% TQ
Stage 2 91 octane: up to 50% HP / 48% TQ
Stage 2 93 octane: up to 54% HP / 50% TQ
Stage 2 E30 octane: up to 60% HP / 55% TQ
Stage 2 AGG (Aggressive burble) versions of maps available
Race gas maps are on the way!

30i models:
Stage 1 91 octane: up to 14% HP / 26% TQ
Stage 1 93 octane: up to 16% HP / 26% TQ
Stage 1 E30 octane: up to 20% HP / 28% TQ
Stage 2 91 octane: up to 16% HP / 28% TQ
Stage 2 93 octane: up to 18% HP / 28% TQ
Stage 2 E30 octane: up to 22% HP / 30% TQ
Stage 2 AGG (Aggressive burble) versions of maps available
Race gas maps are on the way!

bootmod3 app and cloud services offer many unique features not found in any other flash tune including and currently available:

• Mobile app (iOS and Android) and Web (http://www.bootmod3.net)  including Windows and macOS support
• One OTS map/tune included with the purchase and any other maps labeled as "FREE"
• Datalogging hundreds of diagnostic channels, up to 70+ channels concurrently with the highest throughput and sample rates available
• Datalog sharing and charting without a need to upload to 3rd party websites or apps using the mobile app or web browser
• Cloud-based storage for map data and datalogs
• Ability to log any internal RAM variable values with a number of preset ones available
• Reverting back to stock performance map and re-locking the DME to stock programming
• Live Dash - realtime vehicle parameter monitoring via in-app gauges
• Diagnostics
• Read and clear trouble codes in all vehicle modules
• Reset learned adaptations (octane, knock, Valvetronic, etc)
• ECU power reset
• (Optional) Off the shelf (OTS) tunes for 91/93/Race gas/E85 octane (SEE HERE)
• (Optional) Custom tuning available through tuners in the bootmod3 Tuner Directory. bootmod3 contains a full map editor so you can tune your car yourself or with your local tuner of choice as well.

Some of the OTS and possible aftermarket turbo upgrade custom map features provided by the bootmod3 platform :

• Map Customization through Map Editor
• Exhaust Burble adjustments on any map (OTS & Custom)
• GTS Startup Roar
• Max Cooling Mode
• Cold start (cat heating on startup) removal for quieter cold start
• Cat efficiency check (CEL) removal for de-cat downpipes (for off-road use)
• Exhaust Flap Adjustments (Sport Mode)

• Top Speed Limiter Removal
• Electronic Wastegate (EWG) Disable
• Exhaust OPF/PPF/GPF Removal

• Boost By Gear % Reduction
• Re-calibrated Sport Gauges on iDrive

• Maps for upgraded turbos
• E85/blend, RaceGas, and Meth Injection Tuning
• Custom Throttle Mapping
• Backend Flash Maps for Piggyback Use

B48 / B46 engine BMW Vehicles supported (if your vehicle is not listed please inquire with us):

• 2016–2019 F20/F21 120i/125i
• 2016–2019 F30/F31/F34 320i/330i including Hybrid 330e
• 2016–present F22/F23 220i/230i
• 2016–present F32/F33 420i/430i

• 2016-present F36 420i/430i
• 2017–present G30/G31 520i/530i
• 2017-present G01 X3 20i/30i
• 2018-present G02 X4 20i/30i
• 2019-present G20 320i 330i
• 2019-present G30 520i 530i
• 2019-present G01/G02 X3/X4 20i 25i 30i
• 2019-present G05 X5 30i
• 2019-present G11/G12 730i

 For more info take a look at the FAQ here!

*** OBD ENET cable required, available separately (Amazon $20)

*** Vehicles with November 2019+ software may require DME unlock done on the bench to enable OBD flashing. If you have the November 2019+ software update, feel free to contact support@protuningfreaks.com for details

*** bootmod3 OBD WiFi Adapter device is not required to use the bootmod3 platform. It is a convenient option that removes the need for using a laptop in the car when using bootmod3's features.

***Direct ENET Cable connection to an iOS or Android device without having to use the BM3 WiFi Adapter. For more information please email us at sales@protuningfreaks.com or refer to our Instagram and Facebook accounts.

VEHICLE MANUFACTURER WARRANTY AND EMISSIONS DISCLAIMER

Some items used and/or installed by PRO TUNING FREAKS may void portions of your vehicle’s factory warranty. Some items may not be legal for “on highway use”. PRO TUNING FREAKS makes no guarantees to the legality of any parts used for “on highway vehicles” and accepts no responsibility for compliance with the vehicle’s factory warranty.
