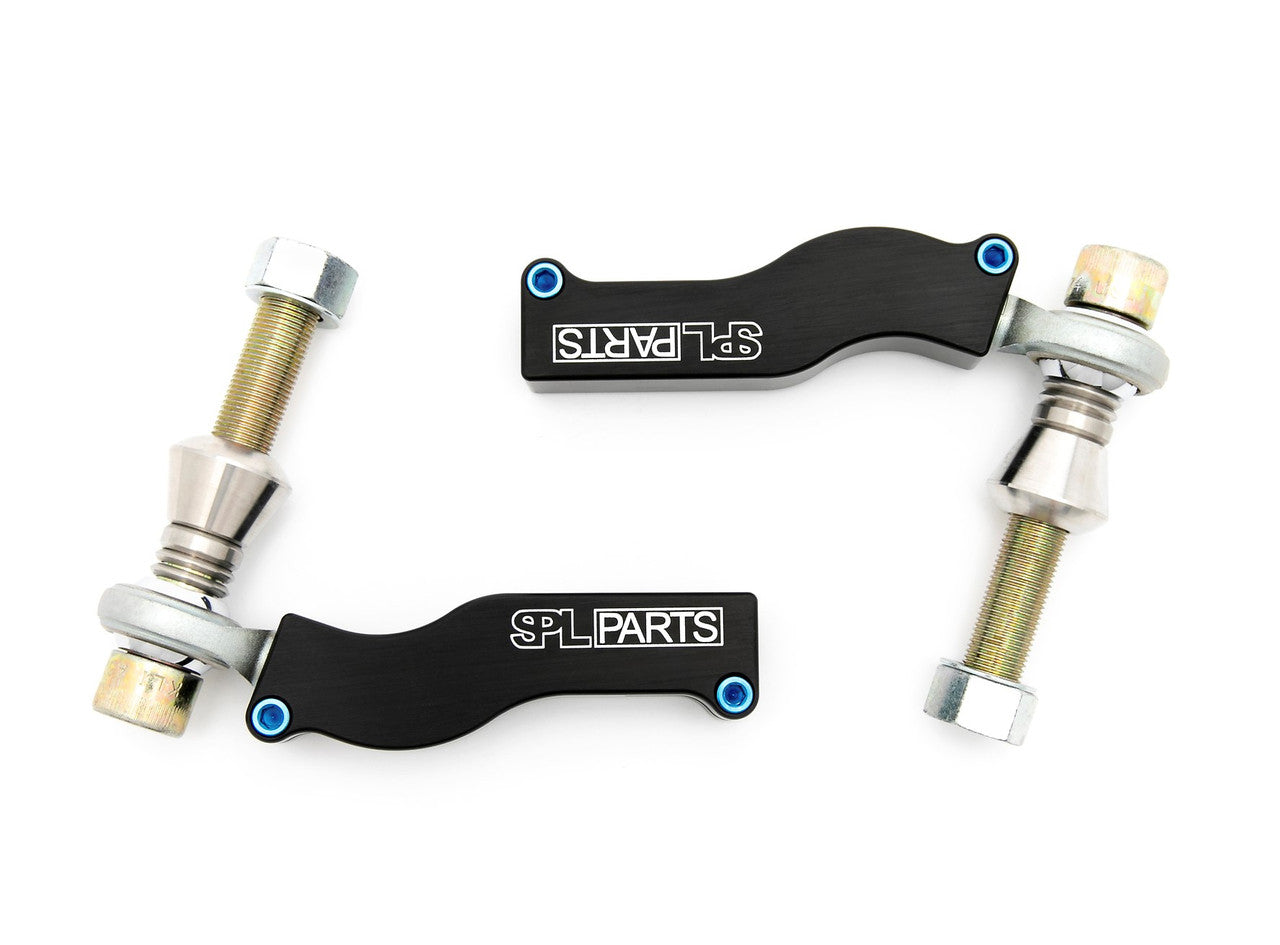

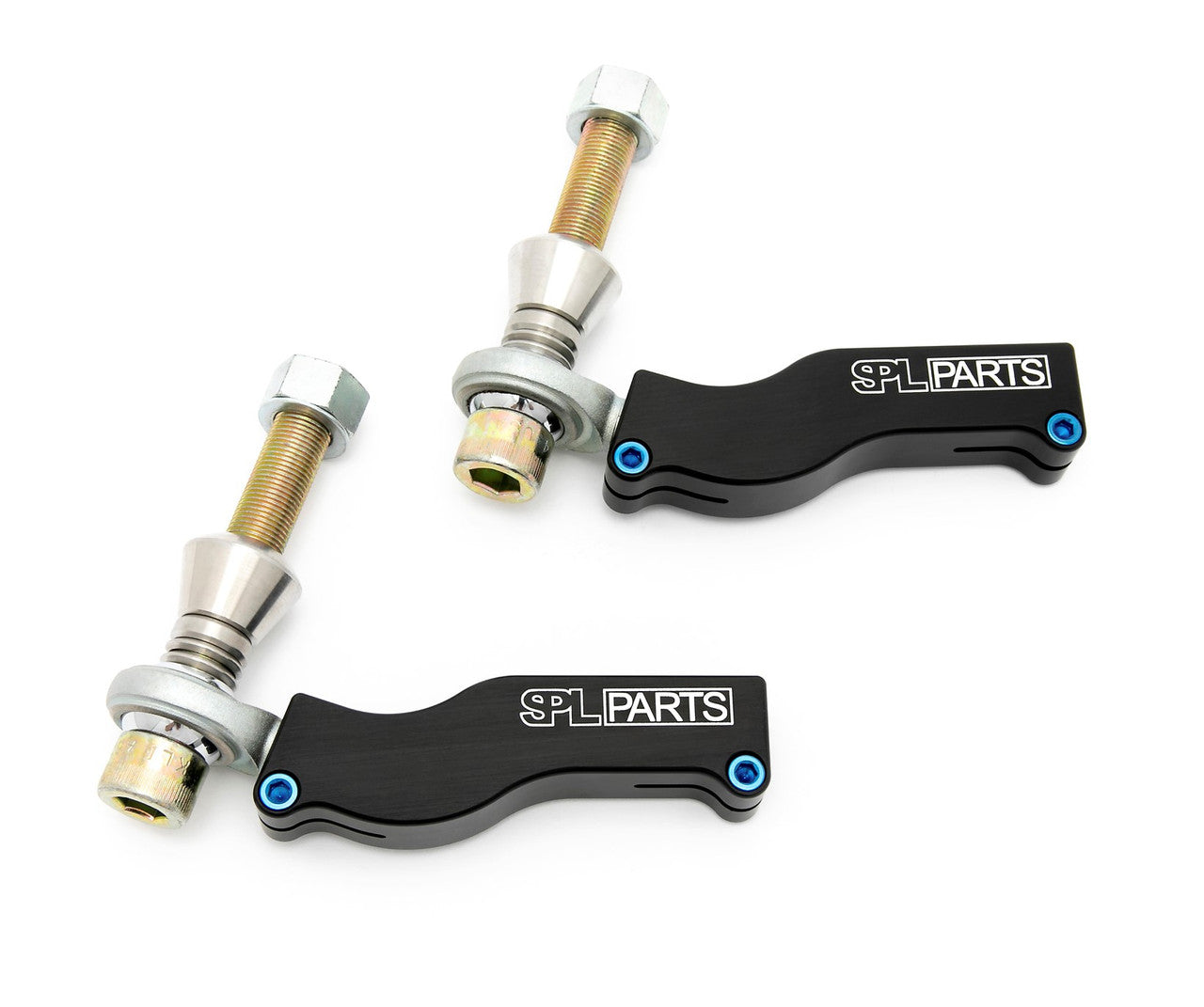

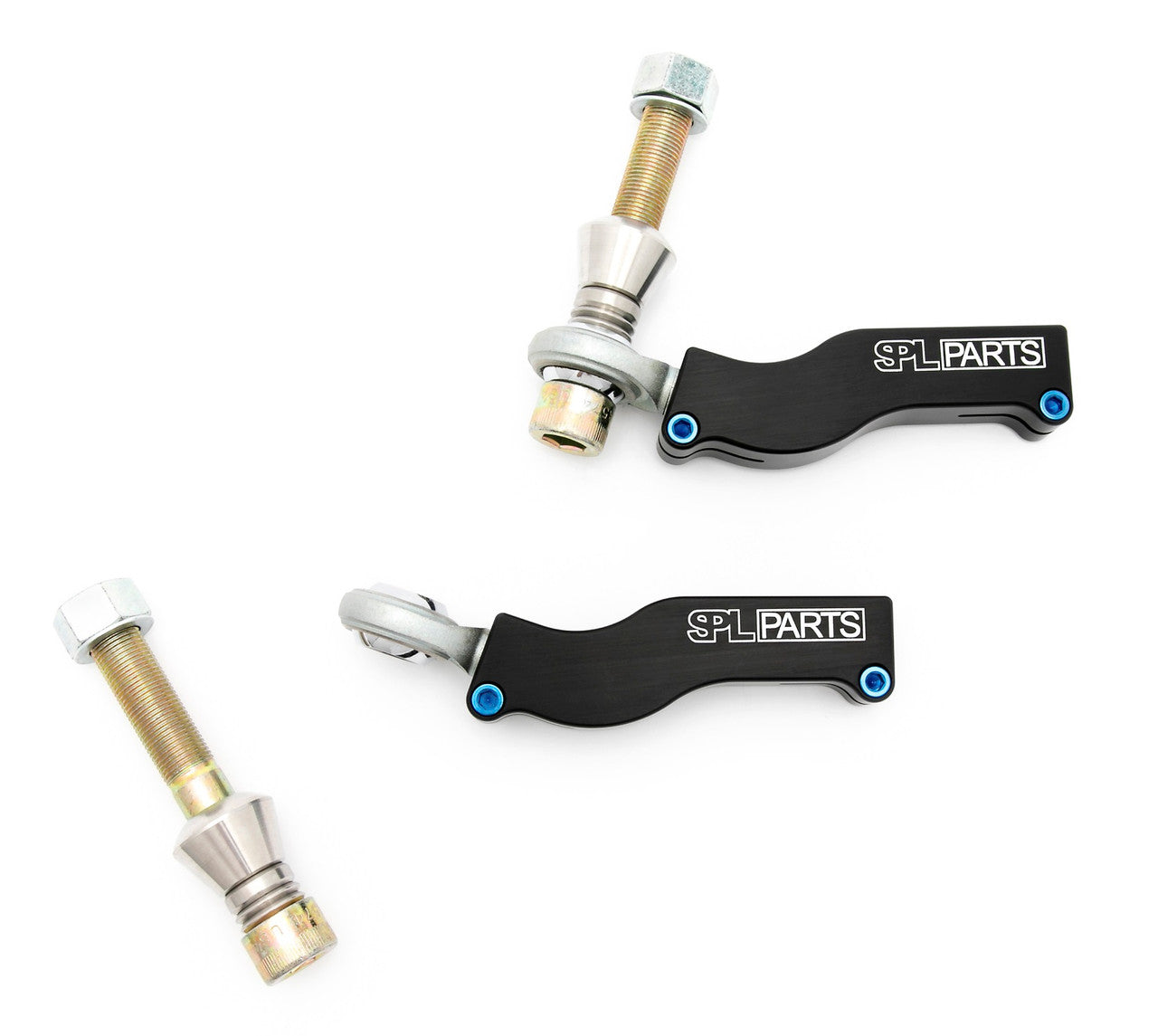

SPL BMW E9X/E8X/F2X/F3X/F8X Tie Rod Ends Bumpsteer Adjustable

SPL BMW E9X/E8X/F2X/F3X/F8X Tie Rod Ends Bumpsteer Adjustable

Regular price $379.00 USD
Regular price Sale price $379.00 USD
Sale Sold out
Shipping calculated at checkout.

BMW E9X/E8X/F2X/F3X/F8X Front Tie Rod Ends (TRE) allow the tie rod end pivot to be relocated, which will correct bump steer resulting from modified caster or lower arm geometry, thus reducing lap times.  On cars that are lowered significantly, relocating the pivot point will also keep the tie rod end from binding, thereby preventing the inner tie rods from breaking or bending when racing.

Sold as a pair.

Made in the USA!



BMW E9X/E8X Adjustable Front Tie Rod Ends Feature:

•    ASTM A574 socket head cap bolts used for maximum articulation with minimum tensile strength of 170,000 psi
•    Custom CNC machined 6061-T6 Billet Aluminum curved turnbuckles to maximize articulation and allow full droop travel
•    Low friction Teflon lined FK Heim joints/rod ends
•    1/4" and 1/8" thick Stainless Steel bump steer spacers for precise adjustment, with tapered ends to provide more misalignment
•    Blue Anodized Titanium socket head cap screws for lightweight and robust clamp force



Applications:

2008-2013
E81, E82, E82M, E87, E88

2006-2013
E90, E91, E92, E93, M-Series

2010 - 2019
F20, F21, F22, F23

2011 - 2020
F30, F31, F32, F3, F34, F36

2014 - 2021
F80, F82, F83, F87


Need Replacement Rod Ends?

SPL Parts Rod End



Installation Instructions:

SPL Bumpsteer Adjustable Tie Rod Ends
