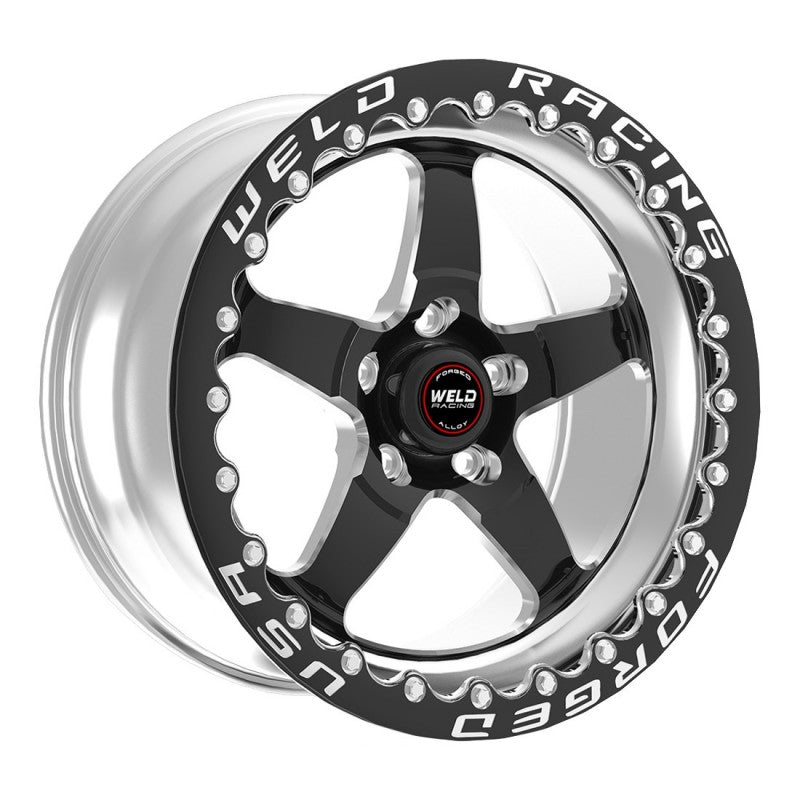

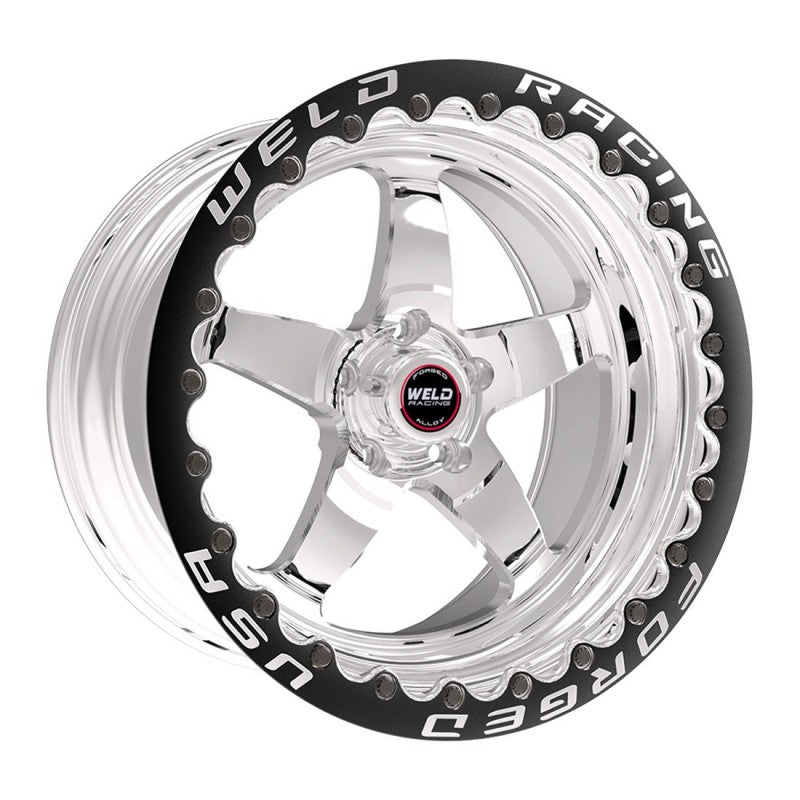

Weld Racing S71 Beadlock Wheel (17x10 5x120 43mm)

 **Note for making these fit on F30/F31/F32/F33/F36 305/35R17 Tires**

Tire Size: 305/35R17

@_youngglo Figured out how to fit these on an F30 340i, here is his guide:

1. Removal of the wheel liner as I didn’t want to have any issues with it rubbing against the tire
2. The subframe mount and bracket, you can either reverse them or cut a nice little chunk out of the front bracket to clear the tire, I optioned to reverse them
3.  Stock springs will be needed to clear the unibody from resting on the tire if you already have coilovers more power to you, I had H&R super sports before witch definitely will not clear.
4. The Wheel spec I went with is 17x10 with a ET of 45 and 7.3 backspace this works great for my application.

WELD Racing brings its application flexible racing technology to the street with a budget-friendly three-piece modular wheel using a unique welded assembly process. This wheel has the classic WELD Racing look and continues the WELD Racing tradition utilizing a forged billet center and cold forged rims. This unique wheel offers 3 mounting pad heights to clear specific drum and multi-piston opposed calipers.

Features:

• 3-Piece forged aluminum construction
• Polished shell with black machined or polished center
• Black Anodized Forged Aluminum Beadlock Rings
• 12-Point Coated Beadlock Hardware
• 15 inch wheels require shank lug nuts
• 17 inch wheels require conical lug nuts
• Non-Beadlock available in 15", 17", 18", and 20" sizes
• Center cap and valve stem included

Specifications:

• Finish: Black Center - Polished Shell
• Size: 17x10
• PCD: 5x120
• Offset: 43
• Bore: 80.77
• BSM (in): 7.2
• Rating: 1580
• Beadlock: Black SBL
• Cap Number: P605-5073B

Note:

• Wheels are made to order. Wheels are typically built and shipped out in 6-8 weeks.
